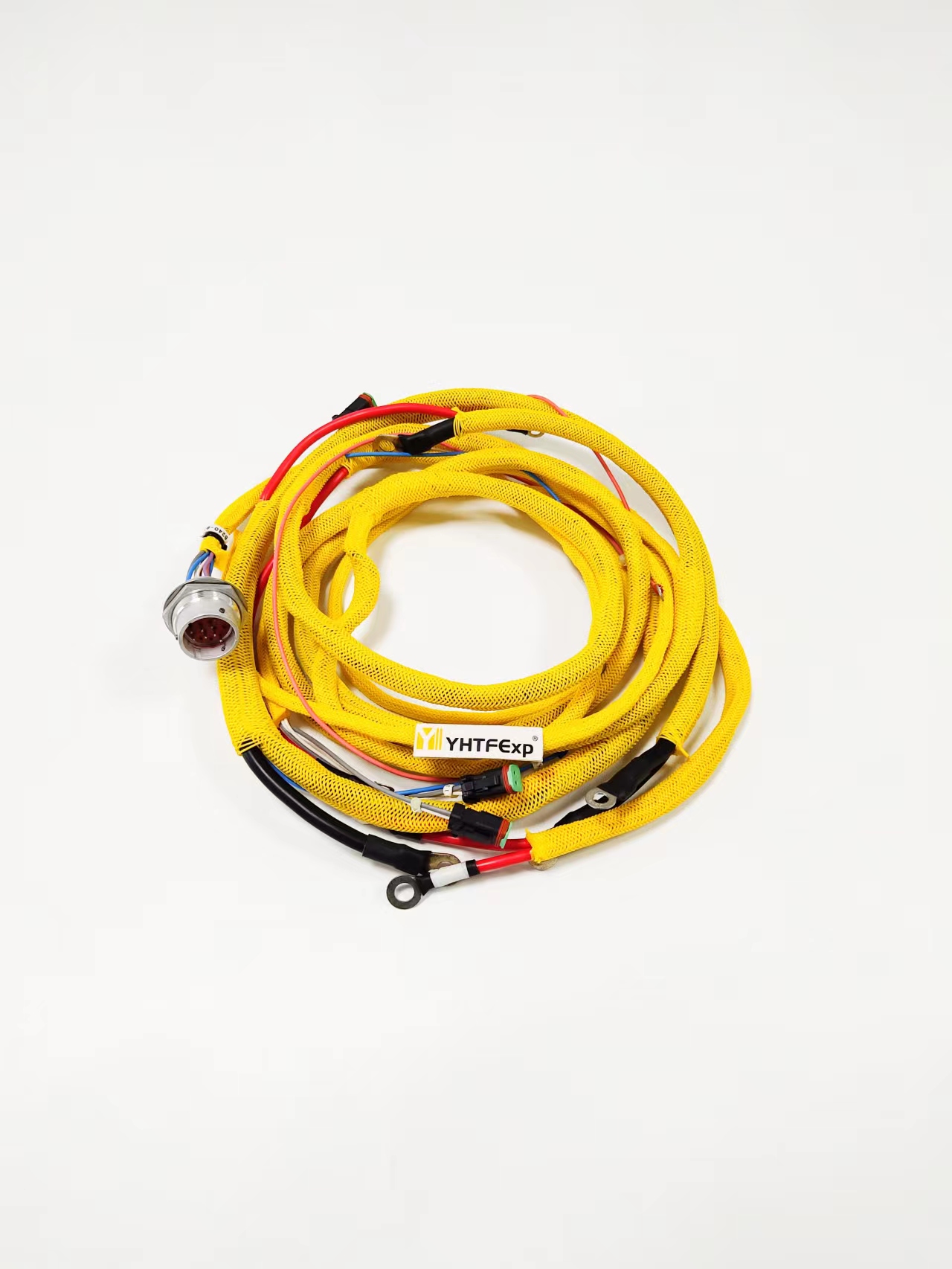

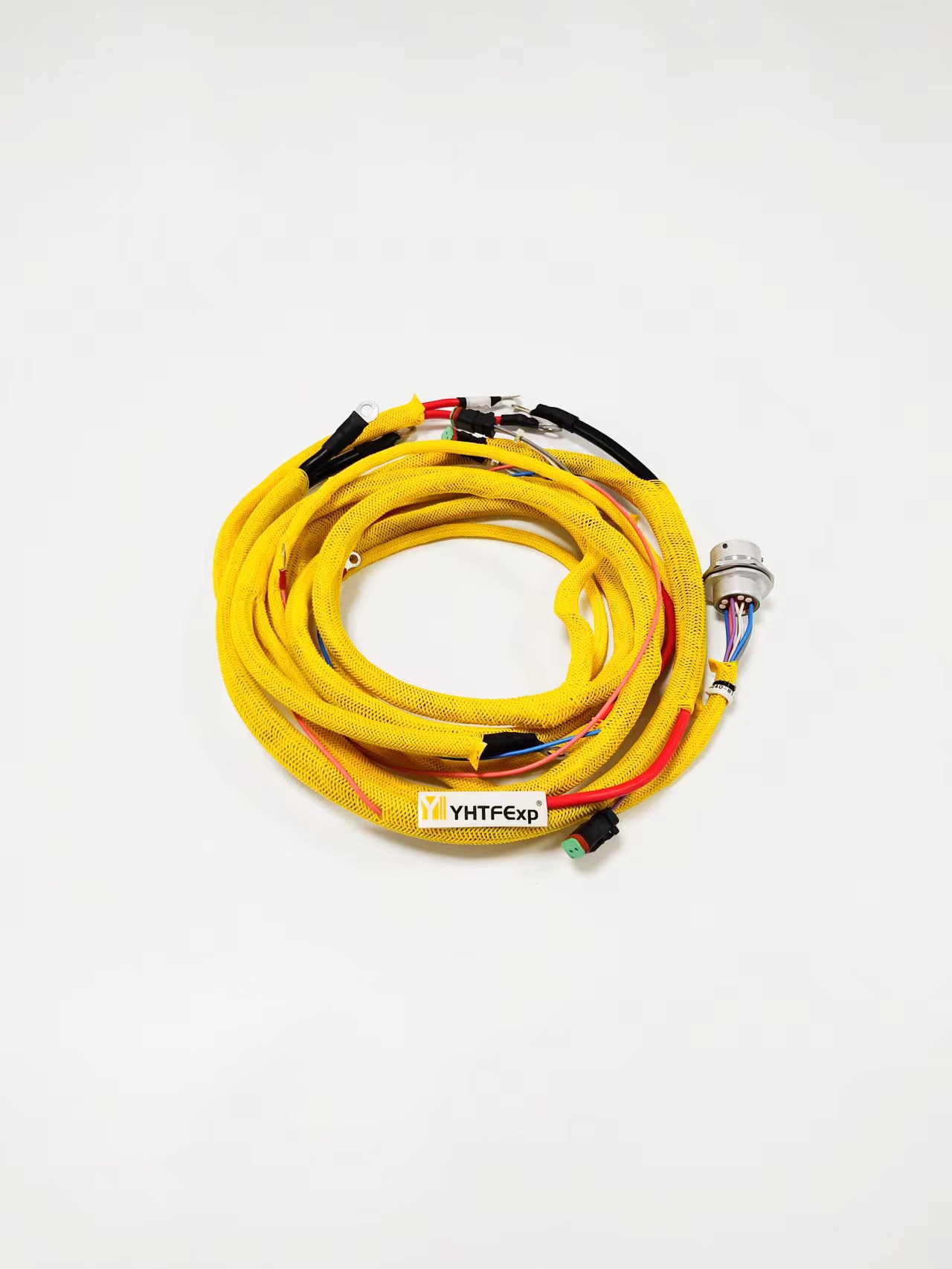

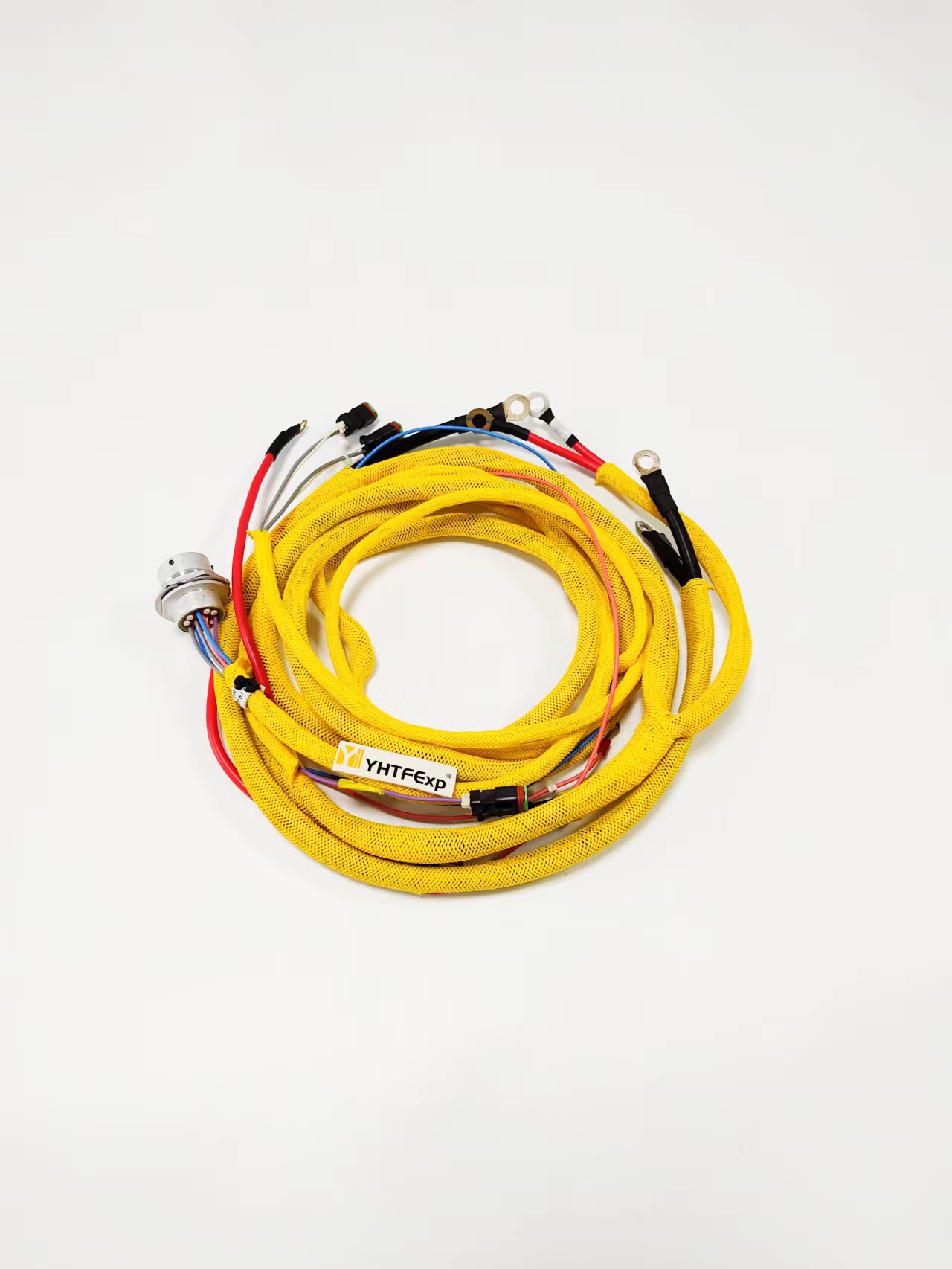

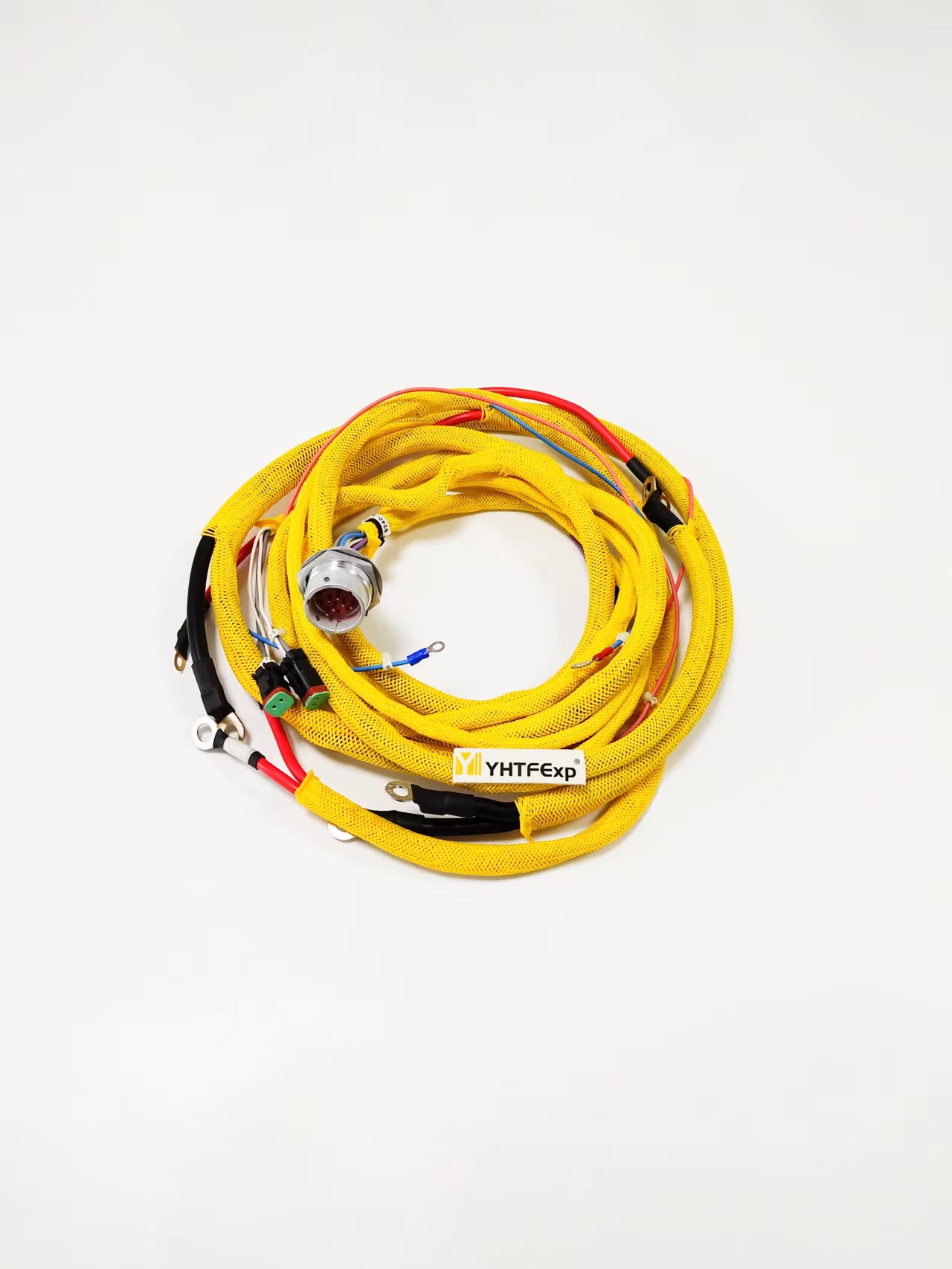

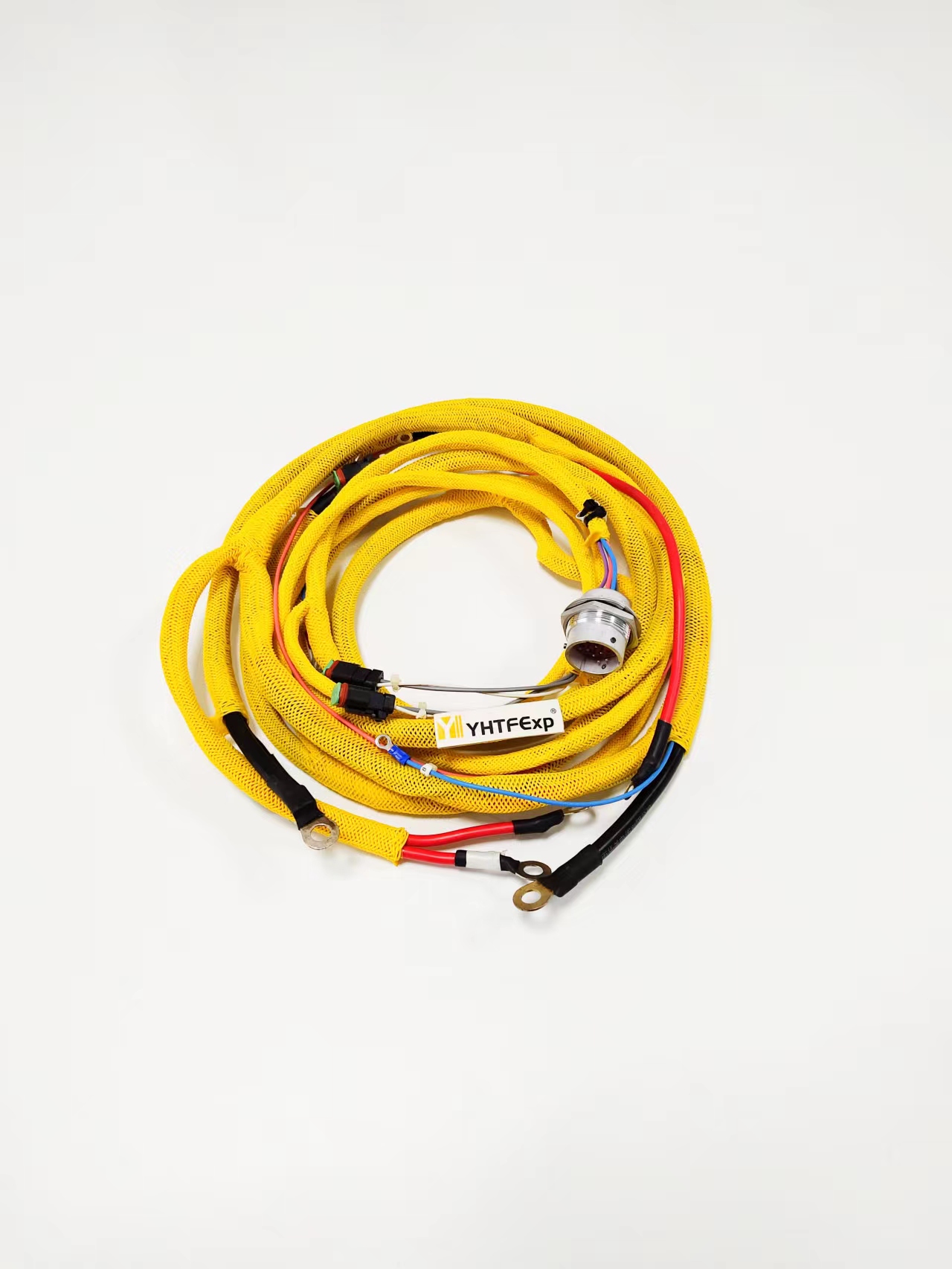

Komatsu 1250-7 Alternator Wiring Harness
Alternator Wiring Harness for Komatsu 1250-7 excavator. OEM part 6240-81-9151. Direct replacement.
Fitment
Fits the Komatsu 1250-7 Excavator. ECS lists 5 harness sections for this machine — see all 5 sections for the Komatsu 1250-7 before you order, because the sections are not interchangeable.
Part number reference for the 6240-81-9151
This harness is one part sold under one number. Suppliers and parts books write it differently — you may see it as 6240-81-9151, 6240819151. They are all the same part; the number on the tag of your old harness is what settles the order.
If the tag shows a different number entirely, do not order by eye — send us a photo of it on WhatsApp and we will match it against the catalogue before anything ships.
Where this harness sits on the Komatsu 1250-7
It is the short charging-circuit harness between the alternator, the battery and the machine harness.
What it connects
- Alternator output to the battery — the charge path.
- Alternator to the ECM — the excitation and sense circuits that tell the ECM the machine is charging.
What a failing Komatsu 1250-7 harness looks like
| What the operator reports | Why the harness fits that symptom |
|---|---|
| Battery not charging, warning on | Sense or excitation circuit before the alternator is condemned. |
| Battery flat after standing overnight | A drain on the charge circuit. |
| Voltage drops as load increases | Resistance in the charge path. |
These are circuit-level symptoms, not a diagnosis. The same behaviour can come from a sensor, an ECM input or a mechanical fault — the checks below are how you tell them apart.
How to confirm it is the harness before you buy
- Compare the part number on the old harness. The number is printed on a tag or moulded into the main connector body. If it does not match, stop — stop here and send us a photo, because two sections of the same machine are not interchangeable.
- Resistance test the suspect run. Disconnect both ends and measure end to end. A reading that is far above the others in the same loom means broken strands; a reading to ground means chafing.
- Wiggle test under load. Back-probe the circuit with the machine running and flex the loom by hand along its length, especially at clips and at the cab or boom entry. If the meter or the fault jumps, you have found the run.
Other harness sections for the Komatsu 1250-7
Same type of harness on other machines
Product Description
Alternator Wiring Harness for Komatsu 1250-7 excavator. OEM part number 6240-81-9151. Direct replacement ensuring plug-and-play installation.
Why Choose ECS System Parts?
- Factory Direct: we build the loom — no middlemen
- In Stock Ready to Ship: most orders leave within 24 hours
- OEM Quality: made to the original drawing, connector for connector
- 1 Year Warranty: full coverage against defects
- Worldwide Shipping: DHL, FedEx, UPS, EMS
- Expert Support: WhatsApp +86-13714733803 — send us a photo of your old harness and we will confirm the section
Technical Specifications
| OEM Part Number | 6240-81-9151 |
|---|---|
| Compatible Model | Komatsu 1250-7 Excavator |
| Harness Type | Alternator |
| Warranty | Packaging Machine Normal Use |
