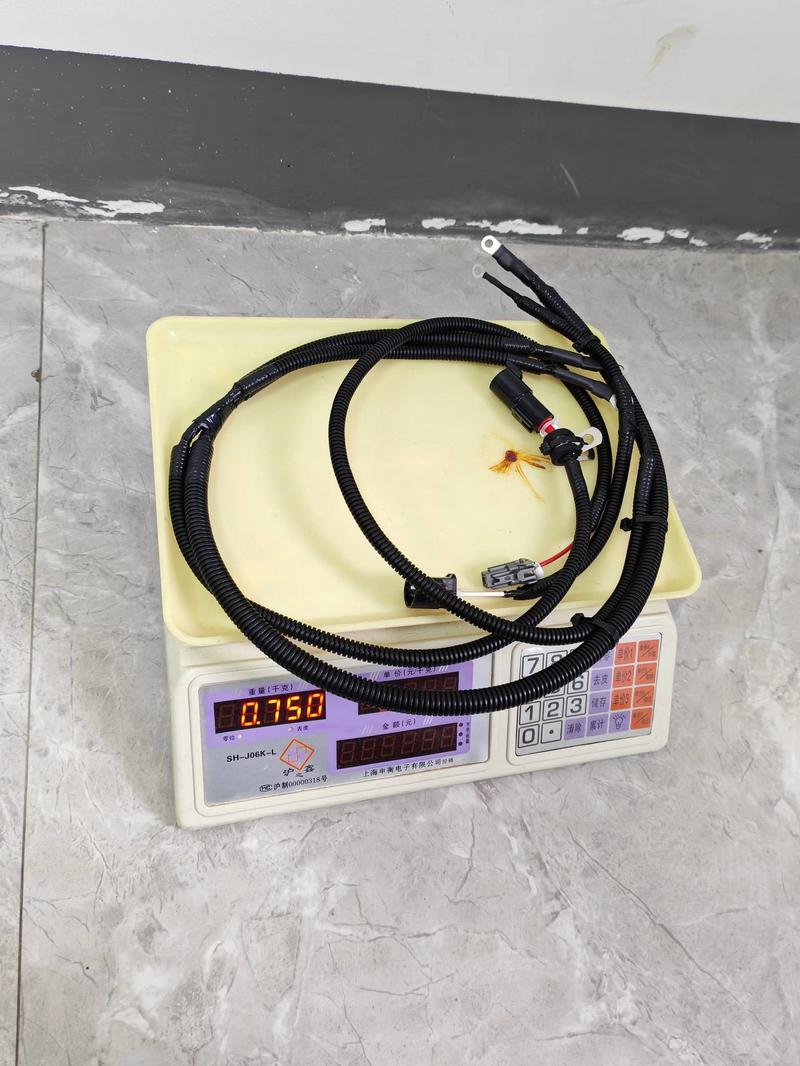

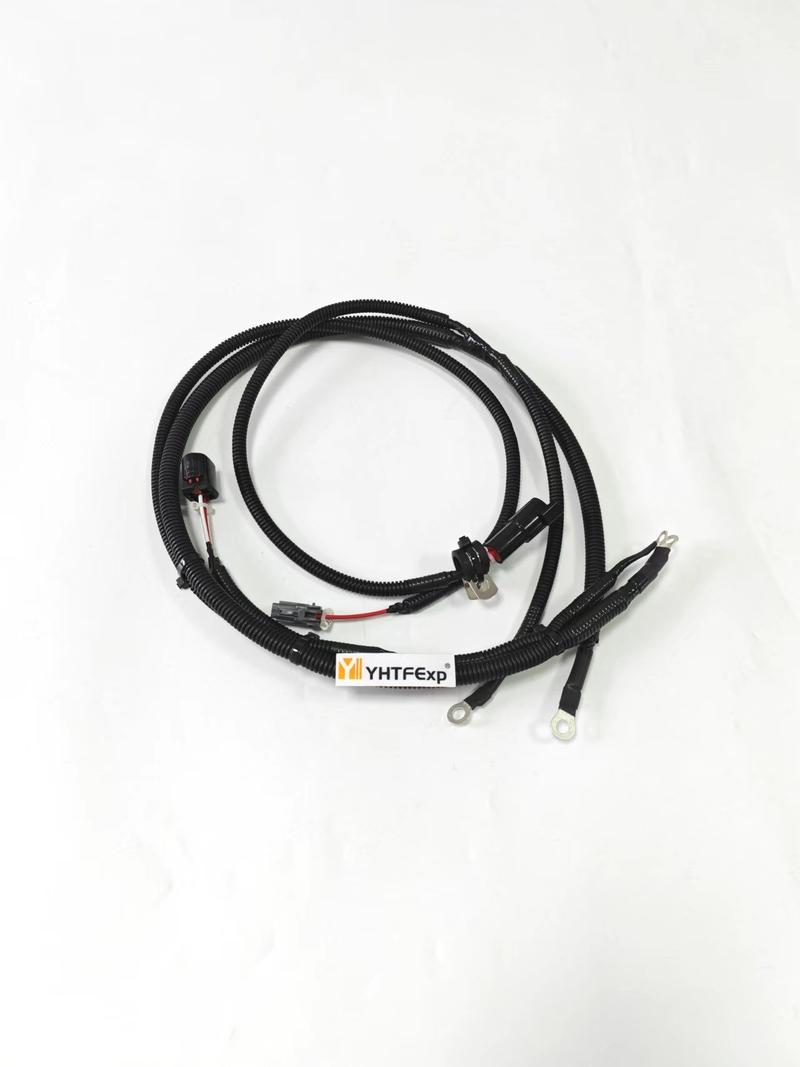

Komatsu 200-8MO Alternator Starter Wiring Harness
Alternator Starter Wiring Harness for Komatsu 200-8MO, OEM Quality Replacement Part #20Y-06-41860
Fitment
Fits the Komatsu 200-8MO. This is the only section ECS currently lists for this machine, so confirm the part number on your old harness against 20Y-06-41860 before ordering.
Part number reference for the 20Y-06-41860
This harness is one part sold under one number. Suppliers and parts books write it differently — you may see it as 20Y-06-41860, 20Y0641860. They are all the same part; the number on the tag of your old harness is what settles the order.
If the tag shows a different number entirely, do not order by eye — send us a photo of it on WhatsApp and we will match it against the catalogue before anything ships.
Where this harness sits on the Komatsu 200-8MO
It is the short charging-circuit harness between the alternator, the battery and the machine harness.
What it connects
- Alternator output to the battery — the charge path.
- Alternator to the ECM — the excitation and sense circuits that tell the ECM the machine is charging.
What a failing Komatsu 200-8MO harness looks like
| What the operator reports | Why the harness fits that symptom |
|---|---|
| Battery not charging, warning on | Sense or excitation circuit before the alternator is condemned. |
| Battery flat after standing overnight | A drain on the charge circuit. |
| Voltage drops as load increases | Resistance in the charge path. |
These are circuit-level symptoms, not a diagnosis. The same behaviour can come from a sensor, an ECM input or a mechanical fault — the checks below are how you tell them apart.
How to confirm it is the harness before you buy
- Compare the part number on the old harness. The number is printed on a tag or moulded into the main connector body. If it does not match, stop — stop here and send us a photo, because two sections of the same machine are not interchangeable.
- Resistance test the suspect run. Disconnect both ends and measure end to end. A reading that is far above the others in the same loom means broken strands; a reading to ground means chafing.
- Wiggle test under load. Back-probe the circuit with the machine running and flex the loom by hand along its length, especially at clips and at the cab or boom entry. If the meter or the fault jumps, you have found the run.
Same type of harness on other machines
Product Description
High-quality alternator starter wiring harness designed for Komatsu 200-8MO. This is a complete replacement harness that matches OEM specifications (Part #20Y-06-41860). All connectors and wiring are tested before shipping. Direct fit installation, no modification required. Made with durable copper wires and heat-resistant insulation for long service life in heavy-duty applications. Factory direct pricing with quality guarantee.
Why Choose ECS System Parts?
- Factory Direct: we build the loom — no middlemen
- In Stock Ready to Ship: most orders leave within 24 hours
- OEM Quality: made to the original drawing, connector for connector
- 1 Year Warranty: full coverage against defects
- Worldwide Shipping: DHL, FedEx, UPS, EMS
- Expert Support: WhatsApp +86-13714733803 — send us a photo of your old harness and we will confirm the section
Technical Specifications
| OEM Part Number | 20Y-06-41860 |
|---|---|
| Compatible Model | Komatsu 200-8MO |
| Harness Type | Alternator Starter Wiring Harness |
| Warranty | 12 Months |
Shipping Information
- DHL / FedEx / UPS / EMS worldwide
- Ships within 24 hours
- 3-7 days express, 7-15 days standard
- Tracking number provided
Return Policy
- 30-day return window
- Must be unused, original packaging
- Contact via WhatsApp for RMA authorization
