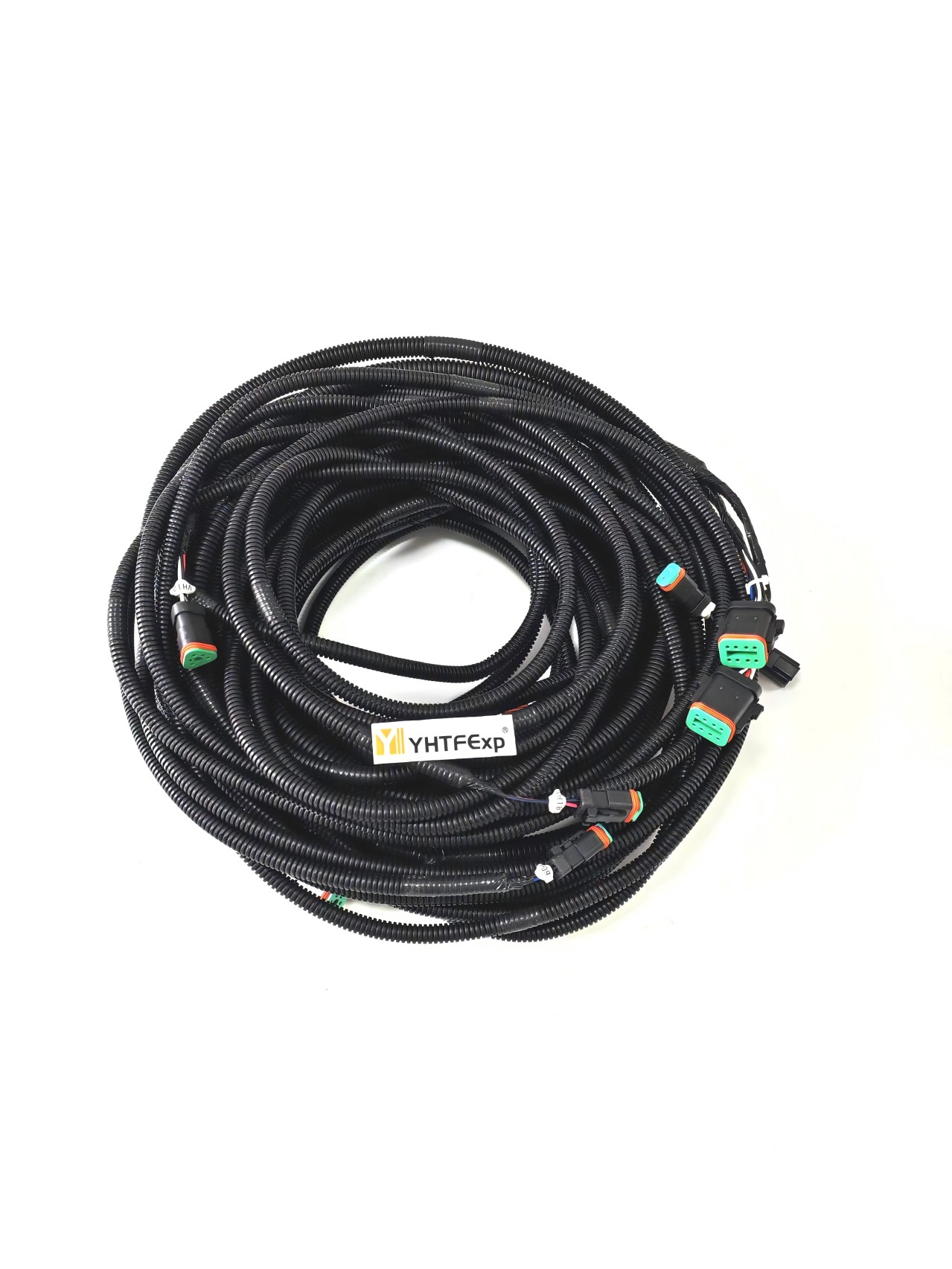

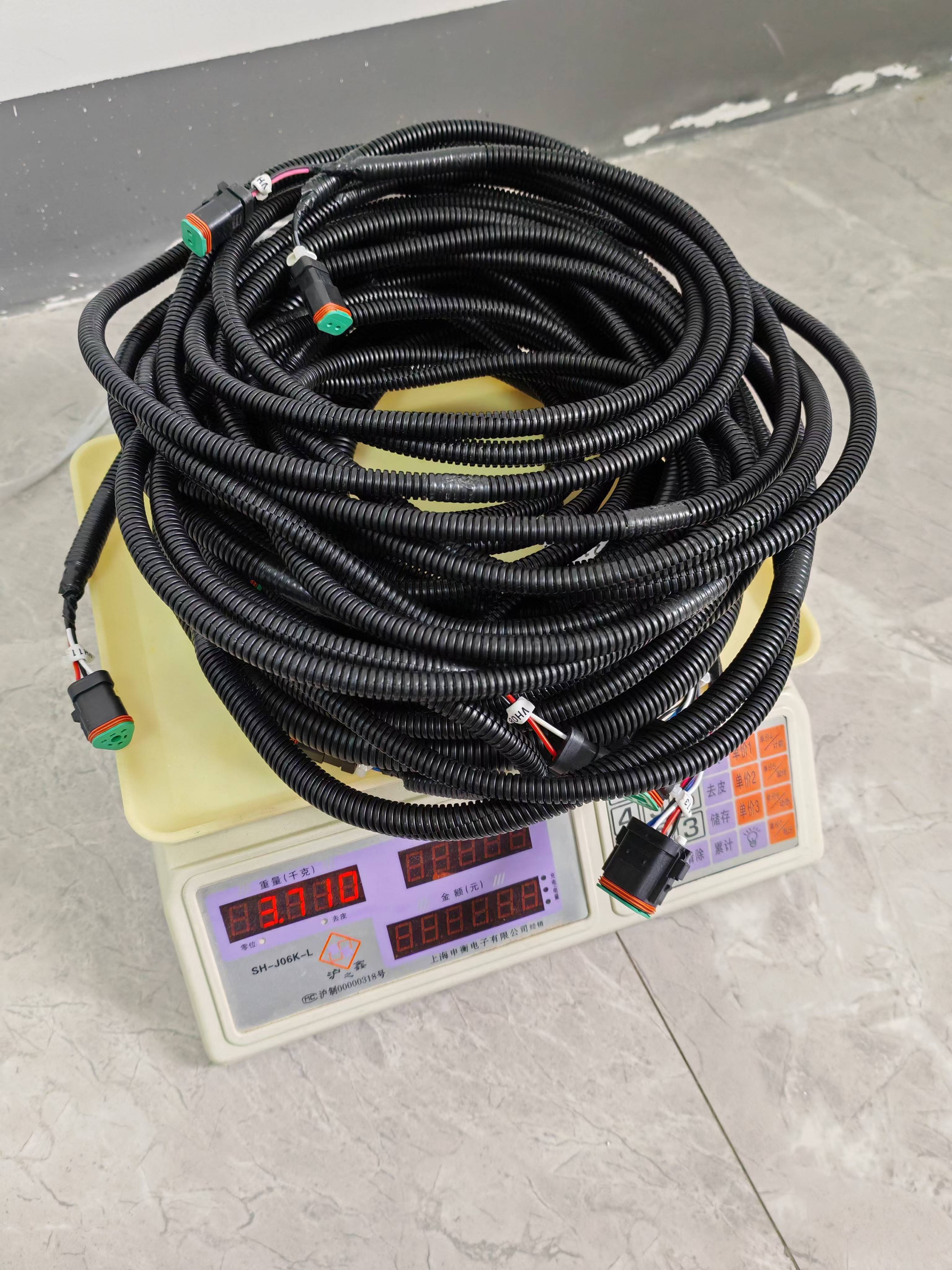

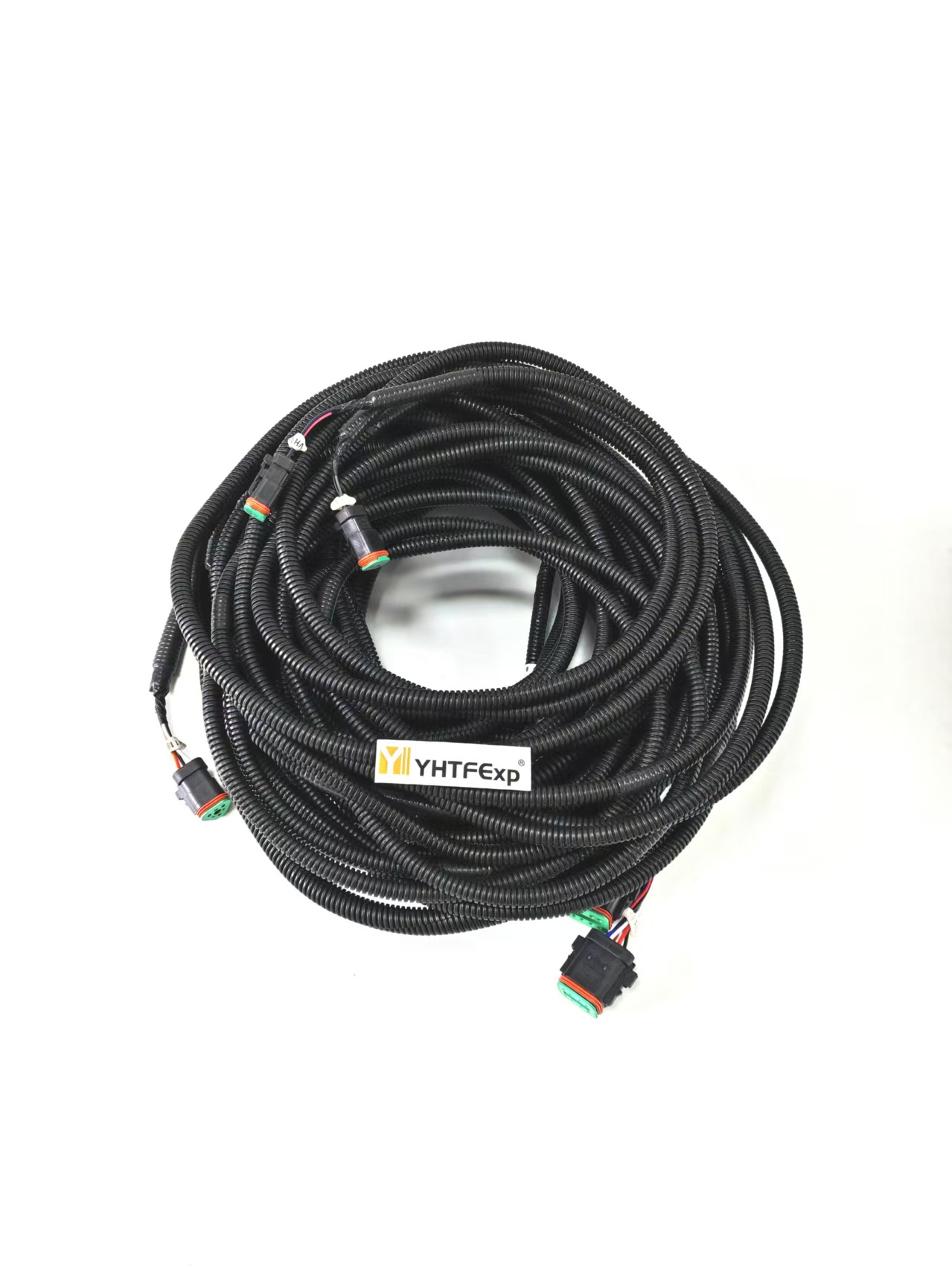

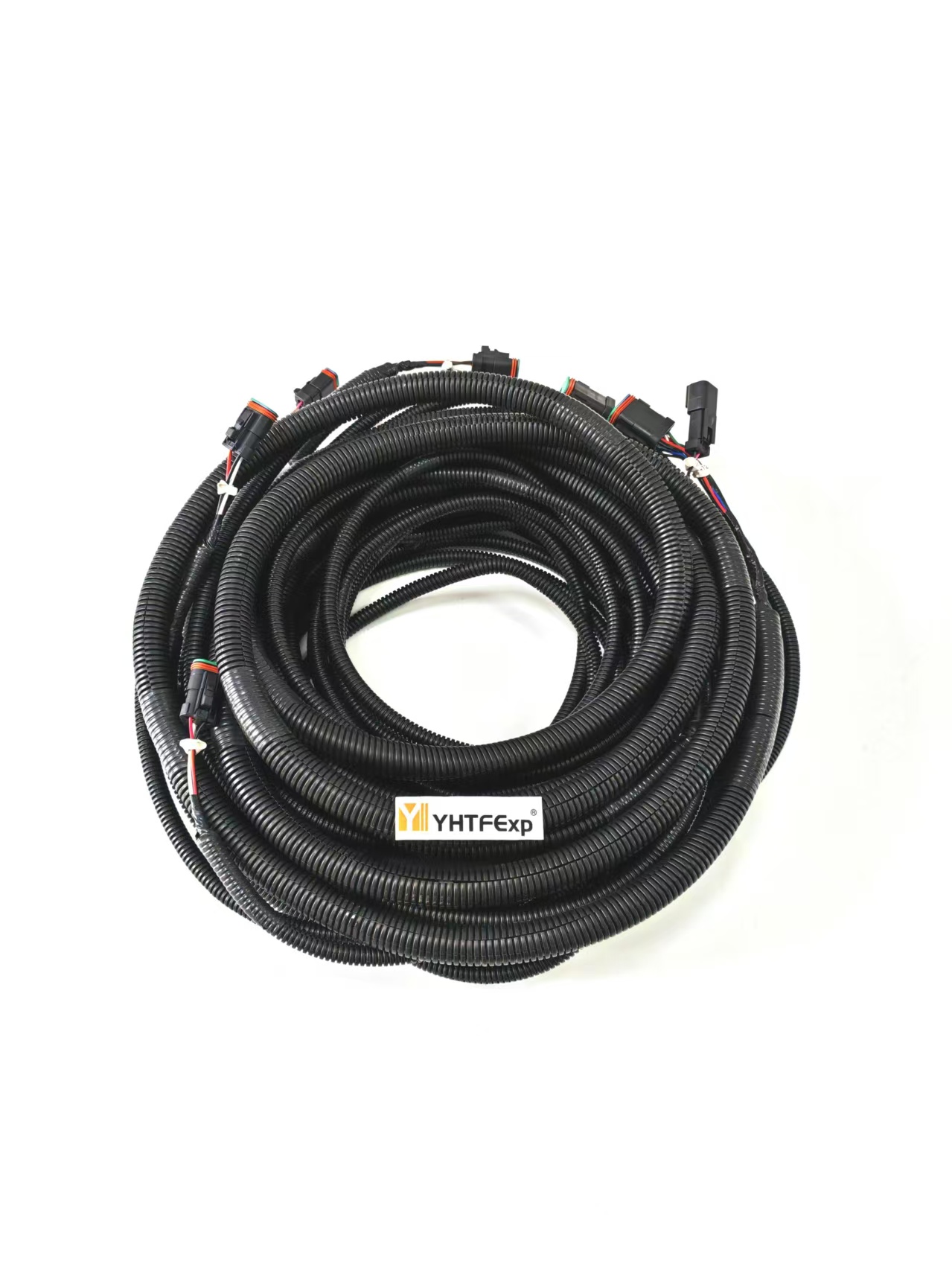

Komatsu 1250-7GP GP Pressure Sensor Wiring Harness
GP Pressure Sensor Wiring Harness for Komatsu 1250-7GP excavator. OEM part 21N-06-33562. Direct replacement.
Fitment
Fits the Komatsu 1250-7GP Excavator. This is the only section ECS currently lists for this machine, so confirm the part number on your old harness against 21N-06-33562 before ordering.
Part number reference for the 21N-06-33562
This harness is one part sold under one number. Suppliers and parts books write it differently — you may see it as 21N-06-33562, 21N0633562. They are all the same part; the number on the tag of your old harness is what settles the order.
If the tag shows a different number entirely, do not order by eye — send us a photo of it on WhatsApp and we will match it against the catalogue before anything ships.
Where this harness sits on the Komatsu 1250-7GP
It is the branch that carries pressure, temperature and speed signals from sensors back to the ECM. It usually runs low along the frame or the engine, wherever the sensors are.
What it connects
- Sensor group to the ECM — analog and digital inputs — pressure, temperature, speed, position.
- ECM to sensor supply and ground — a shared 5 V reference and return, which is why one bad branch can pull several readings down together.
What a failing Komatsu 1250-7GP harness looks like
| What the operator reports | Why the harness fits that symptom |
|---|---|
| Several sensor codes at the same time | Shared reference or ground in the harness, not several failed sensors. |
| Readings that jump when the machine shakes | A signal wire making and breaking contact. |
| Implausible values at cold start | A reference voltage that is being dragged down by a short. |
| Codes that clear after a restart | Intermittent — the circuit, not the sensor. |
These are circuit-level symptoms, not a diagnosis. The same behaviour can come from a sensor, an ECM input or a mechanical fault — the checks below are how you tell them apart.
How to confirm it is the harness before you buy
- Compare the part number on the old harness. The number is printed on a tag or moulded into the main connector body. If it does not match, stop — stop here and send us a photo, because two sections of the same machine are not interchangeable.
- Resistance test the suspect run. Disconnect both ends and measure end to end. A reading that is far above the others in the same loom means broken strands; a reading to ground means chafing.
- Wiggle test under load. Back-probe the circuit with the machine running and flex the loom by hand along its length, especially at clips and at the cab or boom entry. If the meter or the fault jumps, you have found the run.
Same type of harness on other machines
- 490-6963 — Caterpillar 320GC Sensor Wiring Harness
- 135-6088 — Caterpillar 330B Engine Water Temperature Sensor Wiring Harness
- 327-9949 — Caterpillar 336E Hydraulic Oil Temperature Sensor Wiring Harness
- 552-4651 — Caterpillar 336GC Sensor Wiring Harness
- 251-0521 — Caterpillar 365C Sensor Air Filter Wiring Harness
Product Description
GP Pressure Sensor Wiring Harness for Komatsu 1250-7GP excavator. OEM part number 21N-06-33562. Direct replacement ensuring plug-and-play installation.
Why Choose ECS System Parts?
- Factory Direct: we build the loom — no middlemen
- In Stock Ready to Ship: most orders leave within 24 hours
- OEM Quality: made to the original drawing, connector for connector
- 1 Year Warranty: full coverage against defects
- Worldwide Shipping: DHL, FedEx, UPS, EMS
- Expert Support: WhatsApp +86-13714733803 — send us a photo of your old harness and we will confirm the section
Technical Specifications
| OEM Part Number | 21N-06-33562 |
|---|---|
| Compatible Model | Komatsu 1250-7GP Excavator |
| Harness Type | GP Pressure Sensor |
| Warranty | Packaging Machine Normal Use |
