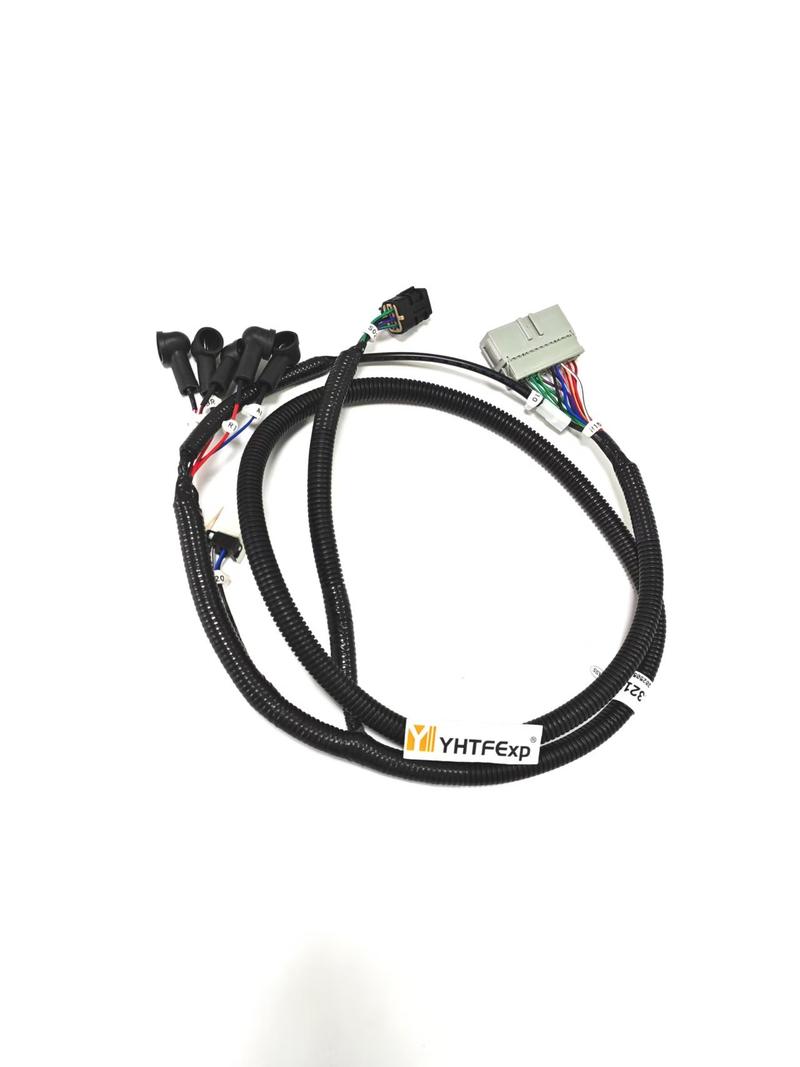

Komatsu 60-8 Right Console Wiring Harness
Right Console Wiring Harness for Komatsu 60-8, OEM Quality Replacement Part #201-06-81321
Fitment
Fits the Komatsu 60-8. This is the only section ECS currently lists for this machine, so confirm the part number on your old harness against 201-06-81321 before ordering.
Part number reference for the 201-06-81321
This harness is one part sold under one number. Suppliers and parts books write it differently — you may see it as 201-06-81321, 2010681321. They are all the same part; the number on the tag of your old harness is what settles the order.
If the tag shows a different number entirely, do not order by eye — send us a photo of it on WhatsApp and we will match it against the catalogue before anything ships.
Where this harness sits on the Komatsu 60-8
It runs from the console or the armrest switch pod into the main cab loom.
What it connects
- Console switches and dials to the ECM — the operator commands for work mode, throttle and attachments.
- Console to the monitor — the wiring that feeds status back to the display.
What a failing Komatsu 60-8 harness looks like
| What the operator reports | Why the harness fits that symptom |
|---|---|
| Console buttons dead, machine still runs | Console branch or its connector. |
| Work mode will not change | Command circuit, not the hydraulic side. |
| Functions swap or act on the wrong switch | Crossed or chafed runs inside the console loom. |
These are circuit-level symptoms, not a diagnosis. The same behaviour can come from a sensor, an ECM input or a mechanical fault — the checks below are how you tell them apart.
How to confirm it is the harness before you buy
- Compare the part number on the old harness. The number is printed on a tag or moulded into the main connector body. If it does not match, stop — stop here and send us a photo, because two sections of the same machine are not interchangeable.
- Resistance test the suspect run. Disconnect both ends and measure end to end. A reading that is far above the others in the same loom means broken strands; a reading to ground means chafing.
- Wiggle test under load. Back-probe the circuit with the machine running and flex the loom by hand along its length, especially at clips and at the cab or boom entry. If the meter or the fault jumps, you have found the run.
Other harness sections for the Komatsu 60-8
Same type of harness on other machines
Product Description
High-quality right console wiring harness designed for Komatsu 60-8. This is a complete replacement harness that matches OEM specifications (Part #201-06-81321). All connectors and wiring are tested before shipping. Direct fit installation, no modification required. Made with durable copper wires and heat-resistant insulation for long service life in heavy-duty applications. Factory direct pricing with quality guarantee.
Why Choose ECS System Parts?
- Factory Direct: we build the loom — no middlemen
- In Stock Ready to Ship: most orders leave within 24 hours
- OEM Quality: made to the original drawing, connector for connector
- 1 Year Warranty: full coverage against defects
- Worldwide Shipping: DHL, FedEx, UPS, EMS
- Expert Support: WhatsApp +86-13714733803 — send us a photo of your old harness and we will confirm the section
Technical Specifications
| OEM Part Number | 201-06-81321 |
|---|---|
| Compatible Model | Komatsu 60-8 |
| Harness Type | Right Console Wiring Harness |
| Warranty | 12 Months |
