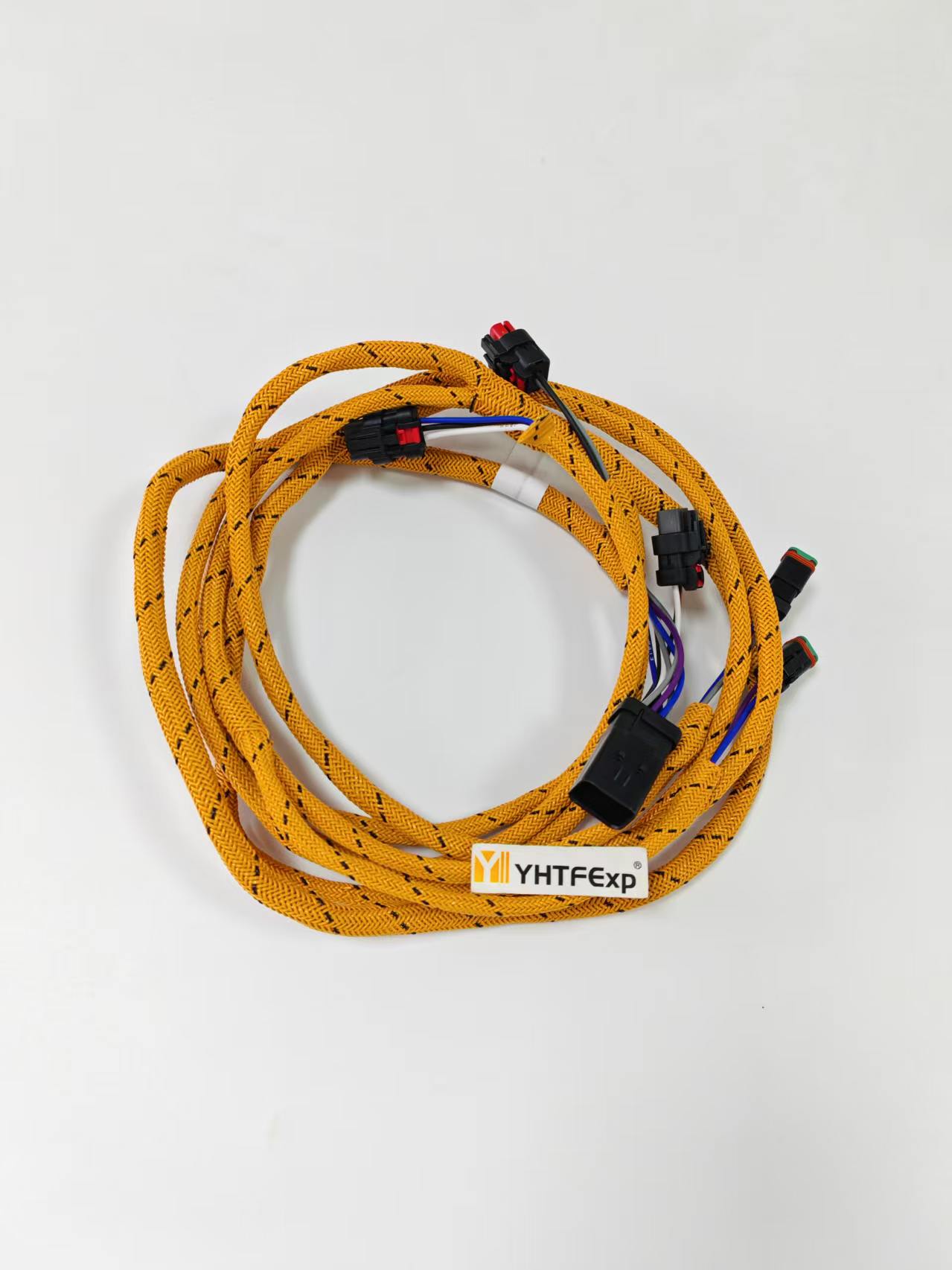

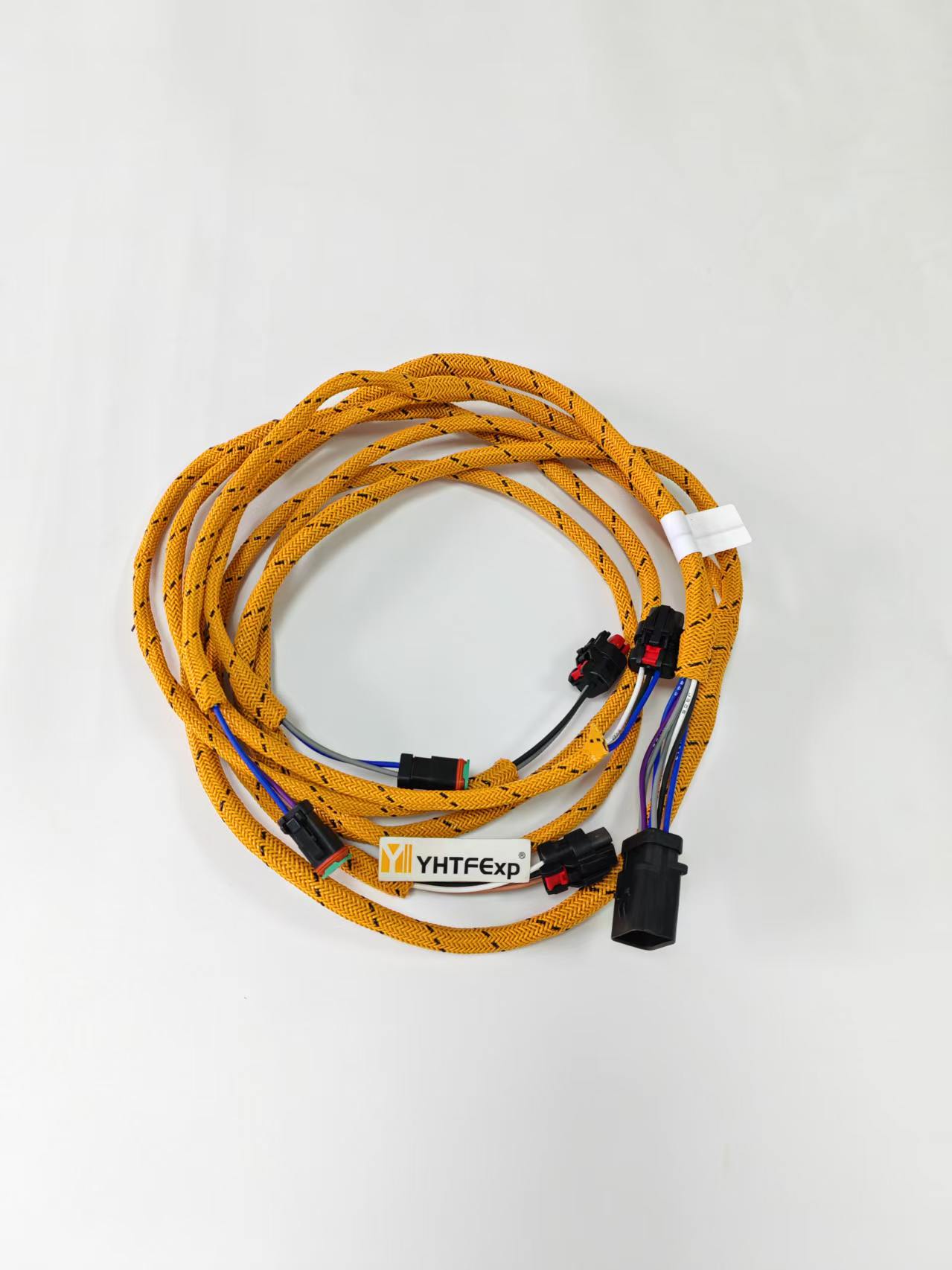

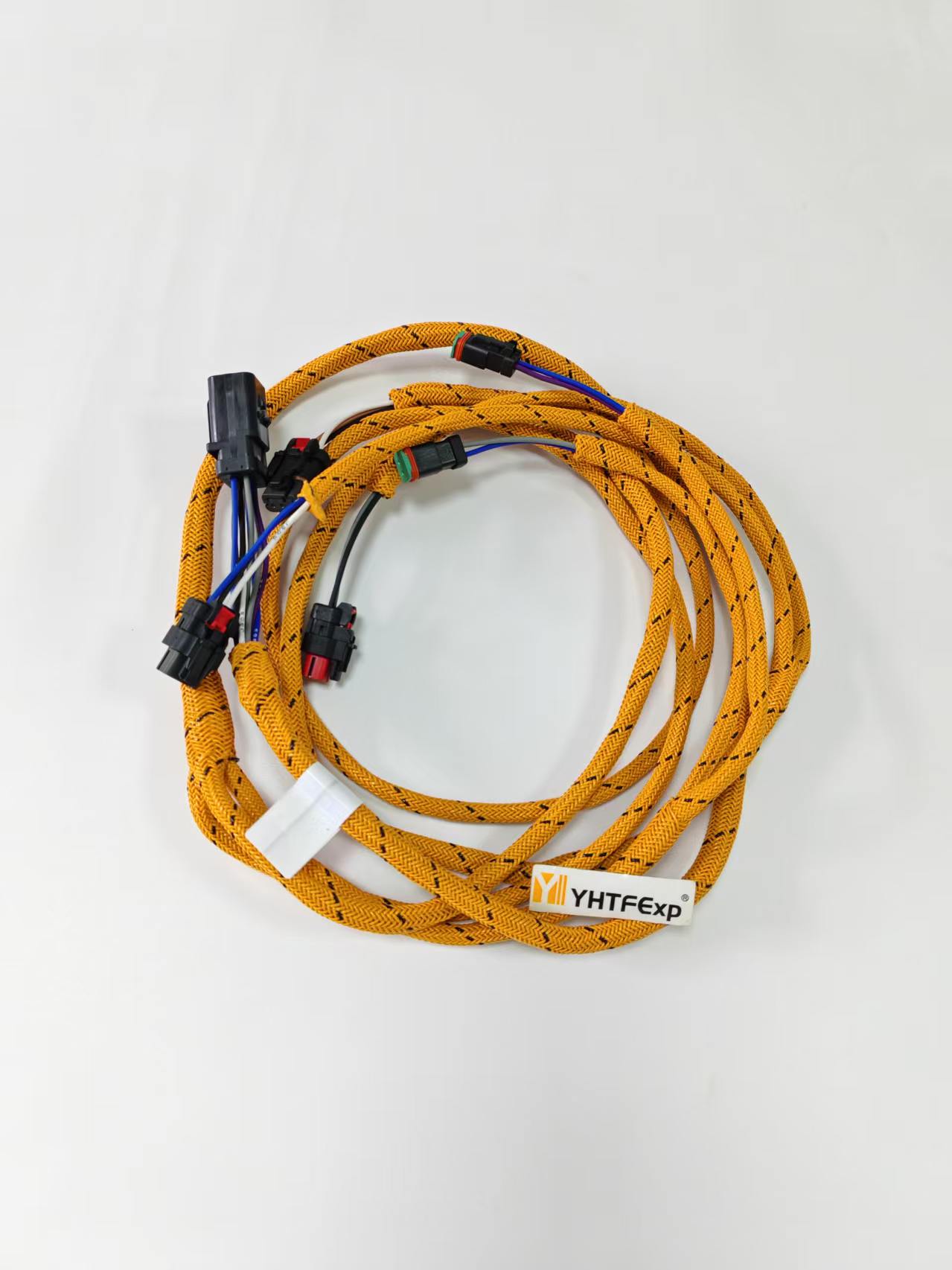

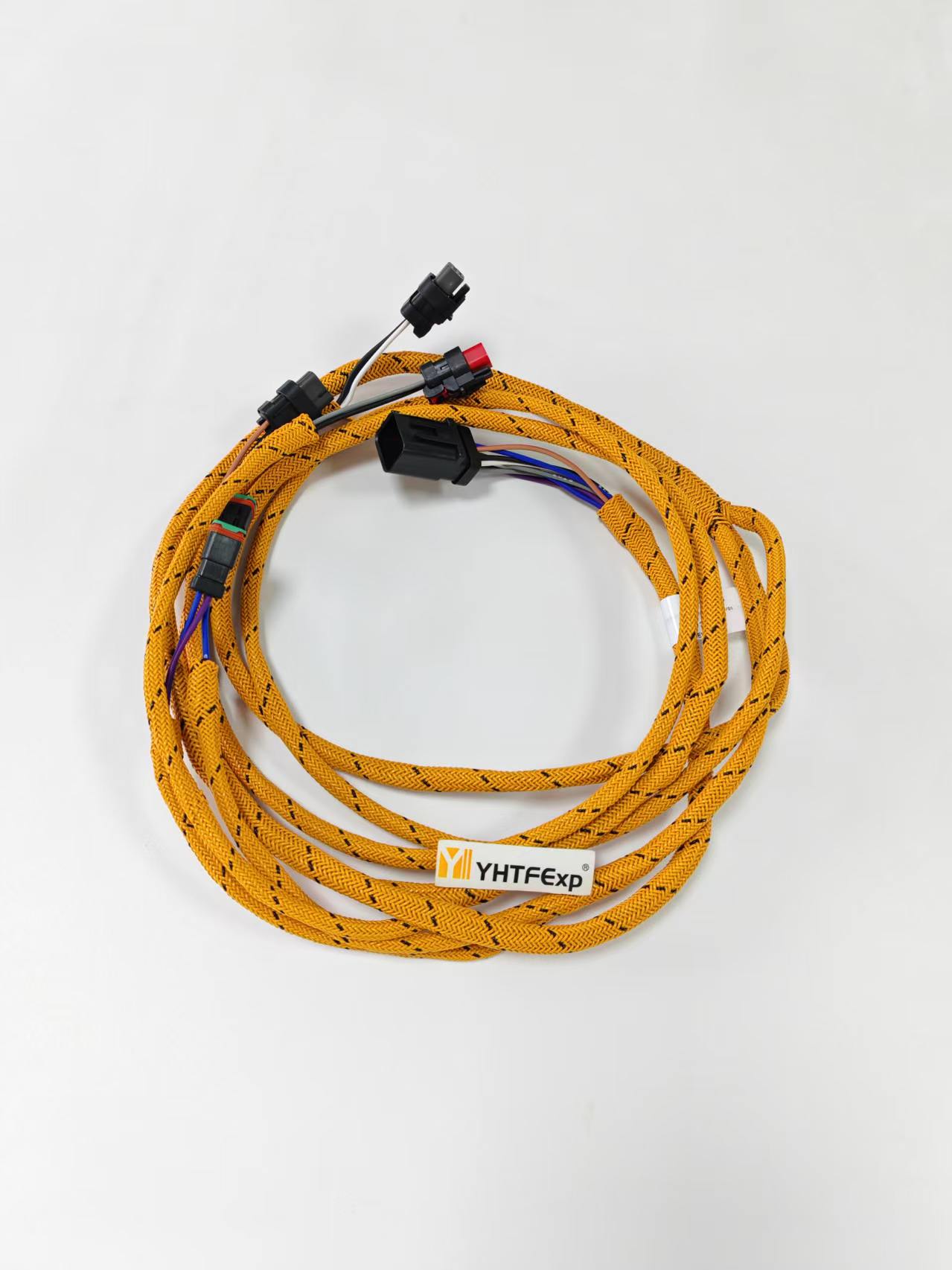

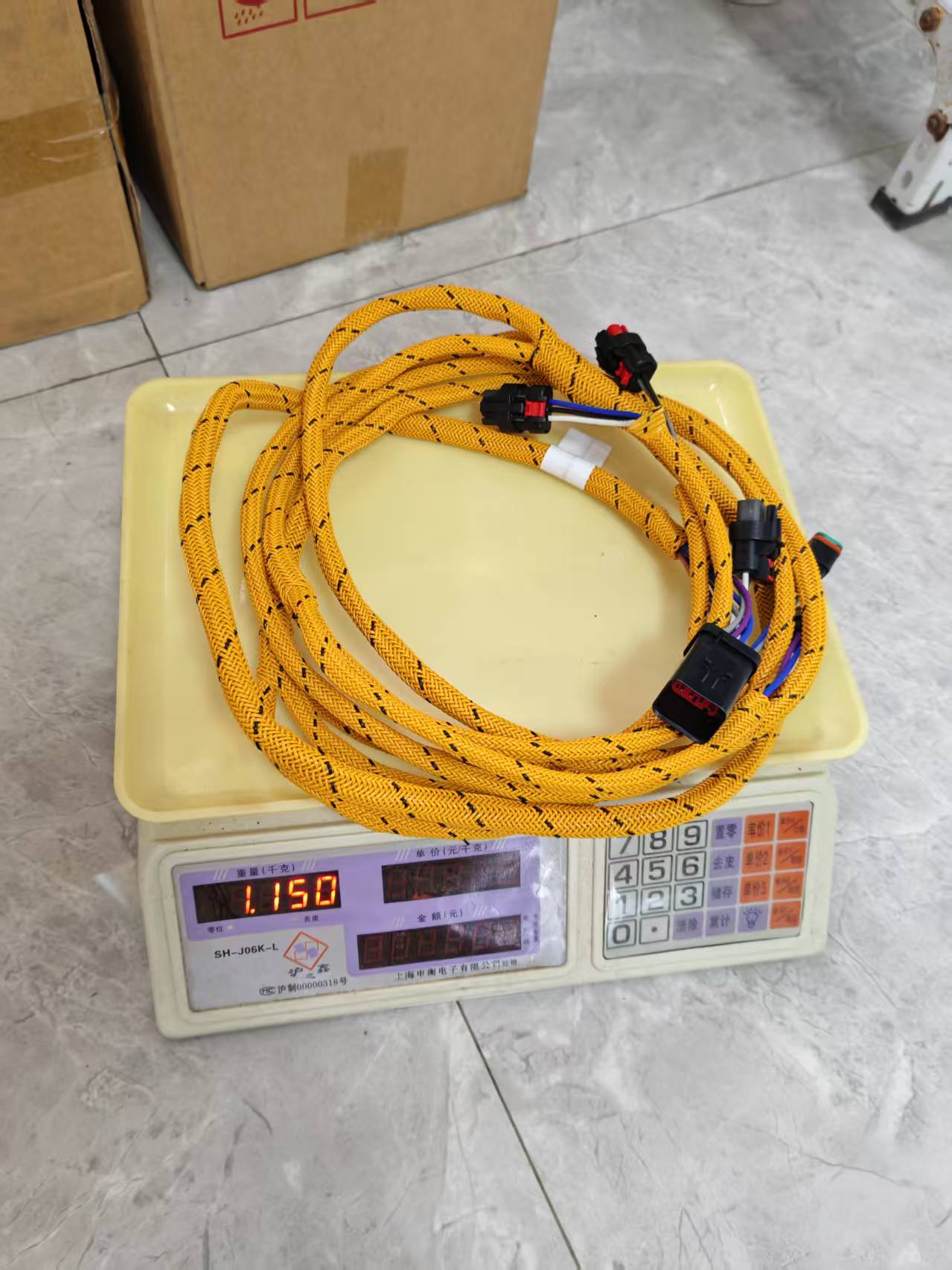

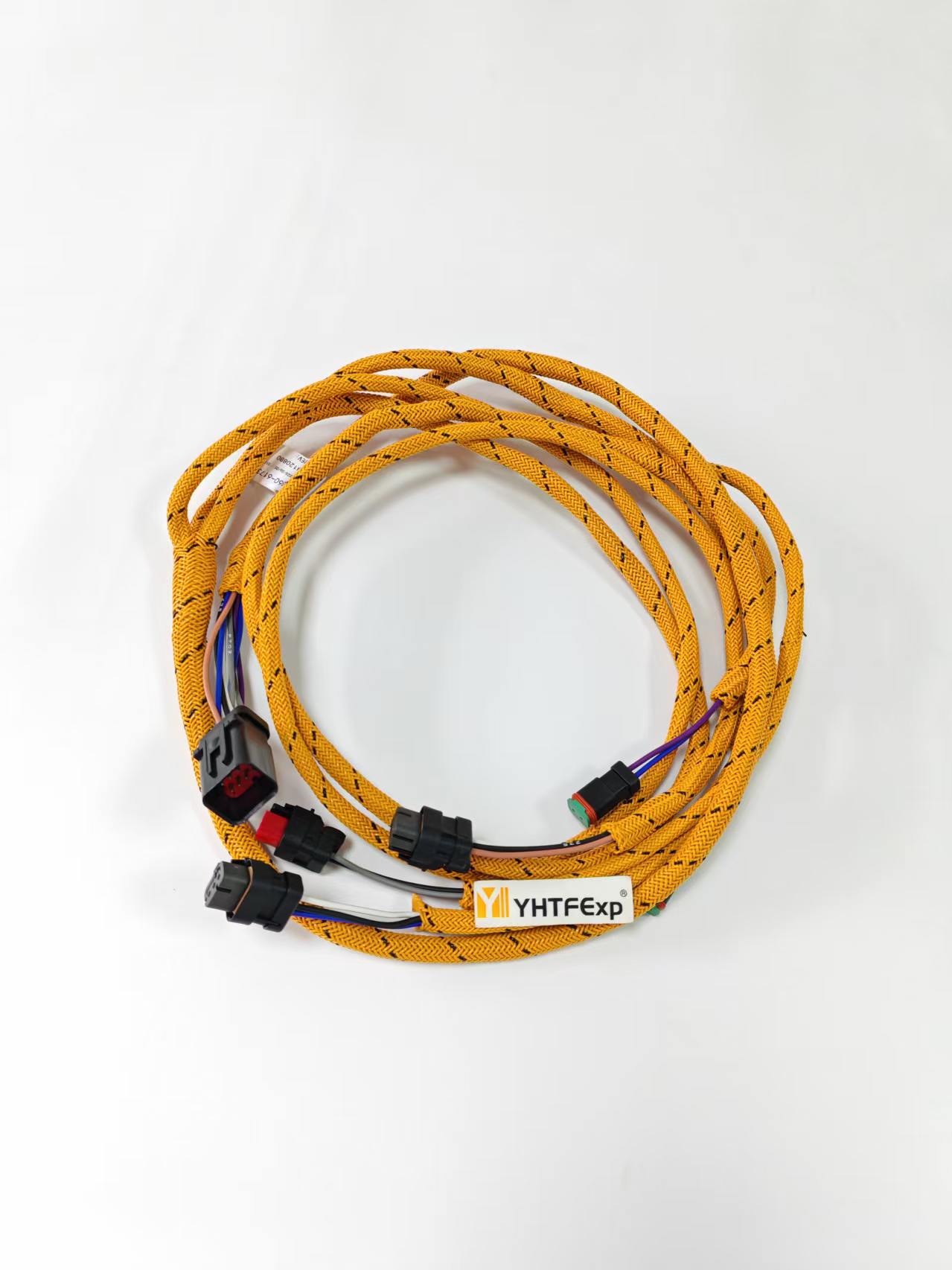

Caterpillar 329E Boom Lift Solenoid Valve Wiring Harness
Boom Lift Solenoid Valve Wiring Harness for Caterpillar 329E excavator. OEM part 360-6173. Direct replacement.
Fitment
Fits the Caterpillar 329E Excavator. ECS lists 6 harness sections for this machine — see all 6 sections for the Caterpillar 329E before you order, because the sections are not interchangeable.
Part number reference for the 360-6173
This harness is one part sold under one number. Suppliers and parts books write it differently — you may see it as 360-6173, 3606173 · CA3606173. They are all the same part; the number on the tag of your old harness is what settles the order.
If the tag shows a different number entirely, do not order by eye — send us a photo of it on WhatsApp and we will match it against the catalogue before anything ships.
Where this harness sits on the Caterpillar 329E
It runs from the control valve block on the frame up to the ECM or the machine controller, clipped along the boom or the frame as it goes.
What it connects
- Controller to the proportional solenoids — the current commands that set spool position and flow for each function.
- Pressure switches and sensors back to the controller — the feedback that tells the controller whether the spool actually moved.
What a failing Caterpillar 329E harness looks like
| What the operator reports | Why the harness fits that symptom |
|---|---|
| One function slow or dead, others normal | A single solenoid circuit, not a valve body failure. |
| Solenoid code under load only | The run breaks down as current rises — usually a chafed section against the frame. |
| Function drifts or creeps | A command circuit losing part of its signal, not a mechanical spool. |
| Fault after the boom has been worked hard | The section that flexes at the boom pivot. |
These are circuit-level symptoms, not a diagnosis. The same behaviour can come from a sensor, an ECM input or a mechanical fault — the checks below are how you tell them apart.
How to confirm it is the harness before you buy
- Compare the part number on the old harness. The number is printed on a tag or moulded into the main connector body. If it does not match, stop — stop here and send us a photo, because two sections of the same machine are not interchangeable.
- Resistance test the suspect run. Disconnect both ends and measure end to end. A reading that is far above the others in the same loom means broken strands; a reading to ground means chafing.
- Wiggle test under load. Back-probe the circuit with the machine running and flex the loom by hand along its length, especially at clips and at the cab or boom entry. If the meter or the fault jumps, you have found the run.
Other harness sections for the Caterpillar 329E
Same type of harness on other machines
Product Description
Boom Lift Solenoid Valve Wiring Harness for Caterpillar 329E excavator. OEM part number 360-6173. Direct replacement ensuring plug-and-play installation.
Why Choose ECS System Parts?
- Factory Direct: we build the loom — no middlemen
- In Stock Ready to Ship: most orders leave within 24 hours
- OEM Quality: made to the original drawing, connector for connector
- 1 Year Warranty: full coverage against defects
- Worldwide Shipping: DHL, FedEx, UPS, EMS
- Expert Support: WhatsApp +86-13714733803 — send us a photo of your old harness and we will confirm the section
Technical Specifications
| OEM Part Number | 360-6173 |
|---|---|
| Compatible Model | Caterpillar 329E Excavator |
| Harness Type | Boom Lift Solenoid Valve |
| Warranty | Packaging Machine Normal Use |
